XP2318GEN - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

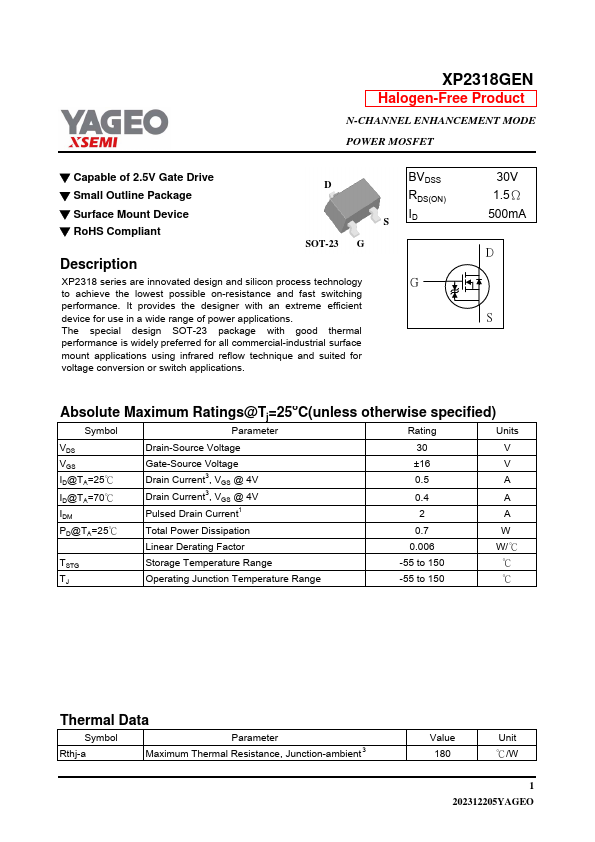

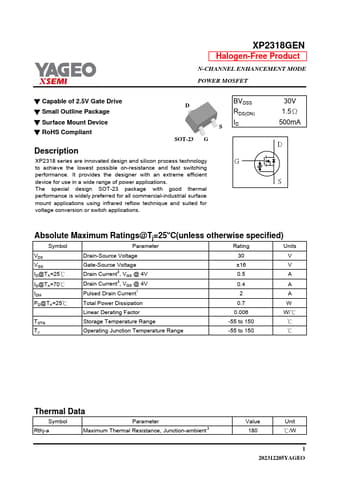

XP2318GEN Description

XP2318GEN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 2.5V Gate Drive ▼ Small Outline Package ▼ Surface Mount Device ▼ .
XP2318 series are innovated design and silicon process technology G to achieve the lowest possible on-resistance and fast switching performance.

XP2318GEN Applications

* The special design SOT-23 package with good thermal performance is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. 30V 1.5Ω 500mA D S Absolute Maximum Ratings@Tj=25oC(unless oth

📥 Download Datasheet

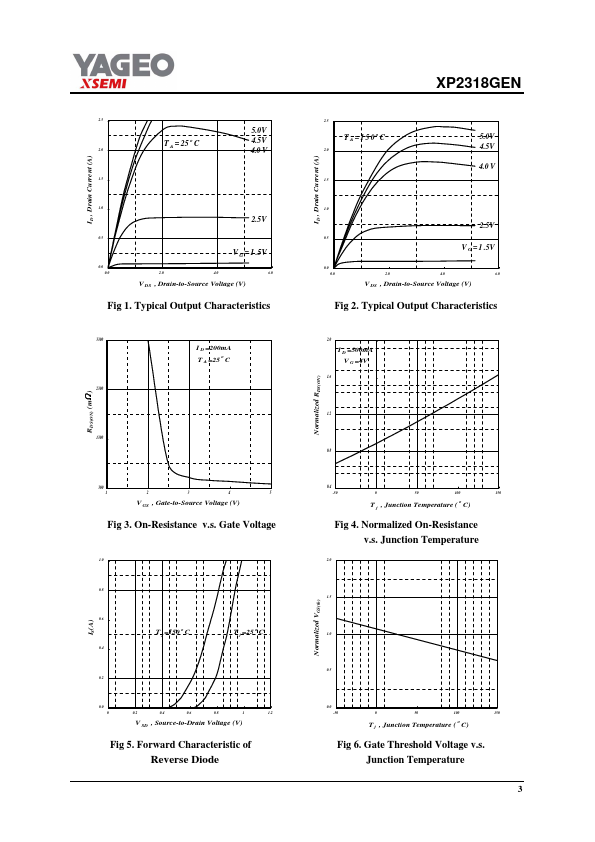

XP2318GEN Datasheet Preview — Preview of XP2318GEN PDF

Datasheet Details

Part number: XP2318GEN
Manufacturer: YAGEO
File Size: 183.16 KB
Datasheet: XP2318GEN-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET
