XP2302GN - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

XP2302GN Description

XP2302GN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 2.5V Gate Drive D ▼ Small Package Outline ▼ Surface Mount Package.
S SOT-23 G XP2302 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching perform.

XP2302GN Applications

* The special design SOT-23 package with good thermal performance is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID G 20V 85mΩ 3.2A D S Absolute Maximum Ratings@Tj=

📥 Download Datasheet

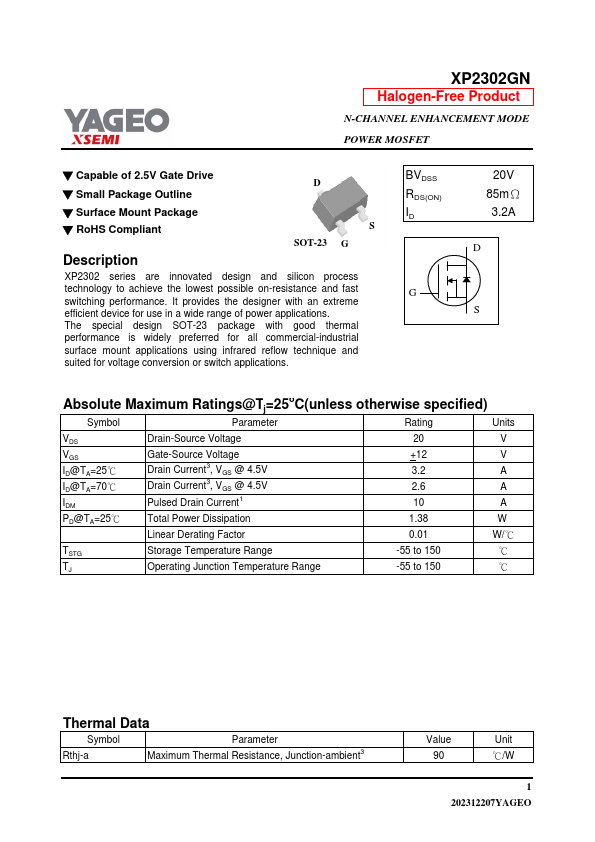

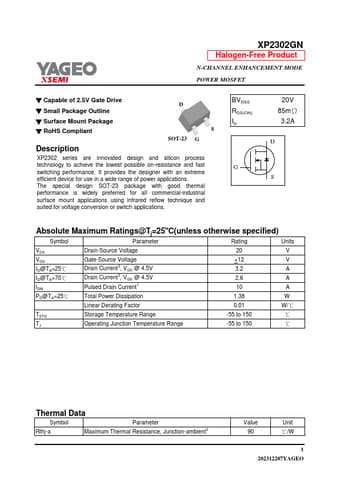

XP2302GN Datasheet Preview — Preview of XP2302GN PDF

Datasheet Details

Part number: XP2302GN
Manufacturer: YAGEO
File Size: 145.62 KB
Datasheet: XP2302GN-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET
