XP2301GN, P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP2301GN Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Package Outline ▼ Surface Mount Device ▼ .
XP2301 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

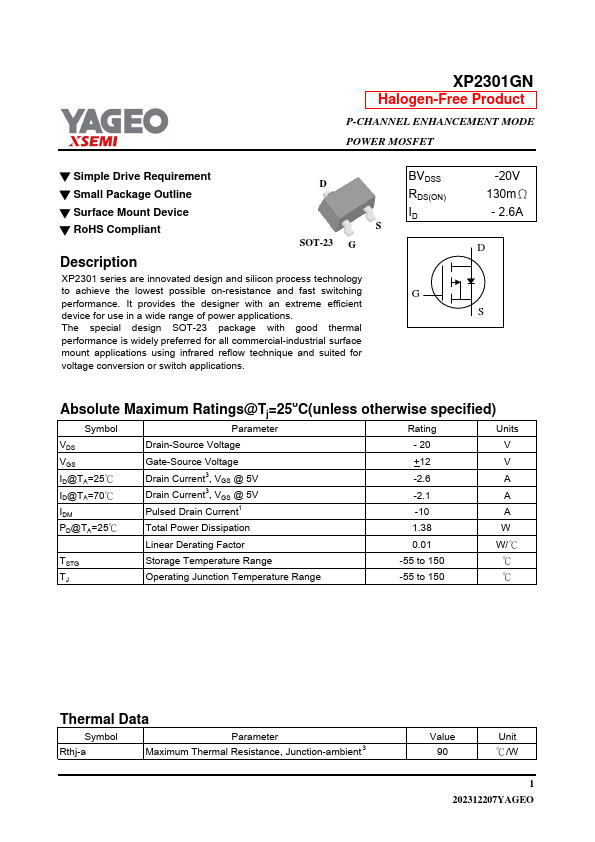

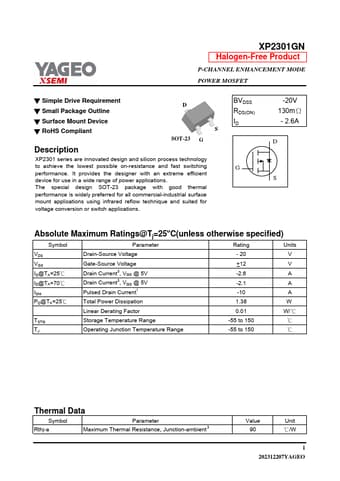

datasheet Preview Page 1 from Datasheet4u.com

XP2301GN-YAGEO.pdf

XP2301GN Datasheet Preview — Preview of XP2301GN PDF

Datasheet Details

Part number:

XP2301GN

Manufacturer:

YAGEO

File Size:

180.80 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The special design SOT-23 package with good thermal performance is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID G -20V 130mΩ - 2.6A D S Absolute Maximum Ratings
