2SC2290 - Silicon NPN Epitaxial Planar Type Transistor

2SC2290 Description

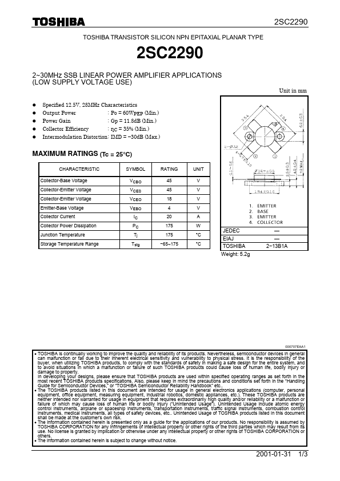

TOSHIBA TRANSISTOR SILICON NPN EPITAXIAL PLANAR TYPE 2SC2290 2SC2290 2~30MHz SSB LINEAR POWER AMPLIFIER APPLICATIONS (LOW SUPPLY VOLTAGE USE) l Spe.

2SC2290 Applications

* (LOW SUPPLY VOLTAGE USE) l Specified 12.5V, 28MHz Characteristics l Output Power : Po = 60WPEP (Min. ) l Power Gain : Gp = 11.8dB (Min. ) l Collector Efficiency : ηC = 35% (Min. ) l Intermodulation Distortion: IMD =
* 30dB (Max. ) MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC Collector-Bas
