2SC2292 Datasheet - SavantIC

SILICON POWER TRANSISTOR

2SC2292 General Description

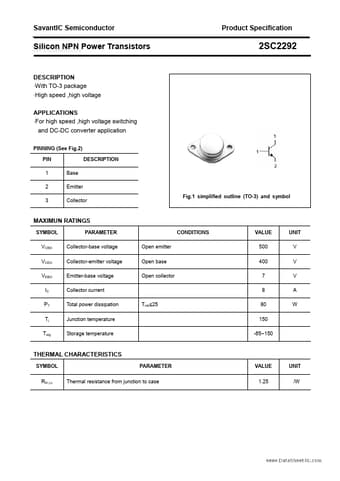

*With TO-3 package *High speed ,high voltage APPLICATIONS *For high speed ,high voltage switching and DC-DC converter application PINNING (See Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION MAXIMUN RATINGS SYMBOL VCBO VCEO VEBO IC PT Tj Ts.

2SC2292 Datasheet (141.53 KB)

Preview of 2SC2292 PDF

Datasheet Details

Part number:

2SC2292

Manufacturer:

SavantIC

File Size:

141.53 KB

Description:

Silicon power transistor.
