2SC3329 Silicon NPN TRANSISTOR

Toshiba Semiconductor

Description

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) 2SC3329 For Low Noise Audio Amplifier Applications and Recommended for The First Stages of.

📥 Download Datasheet

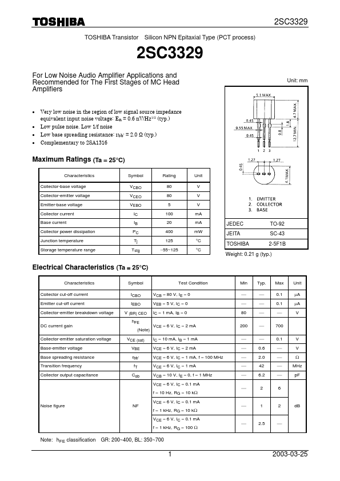

2SC3329 Datasheet Preview — Preview of 2SC3329 PDF

Datasheet Specifications

Part number: 2SC3329
Manufacturer: Toshiba ↗ Semiconductor
File Size: 146.03 KB
Datasheet: 2SC3329_ToshibaSemiconductor.pdf
Description: Silicon NPN TRANSISTOR

Applications

* and Recommended for The First Stages of MC Head Amplifiers 2SC3329 Unit: mm
* Very low noise in the region of low signal source impedance equivalent input noise voltage: En = 0.6 nV/Hz1/2 (typ. )
* Low pulse noise. Low 1/f noise
* Low base spreading resistance: rbb’ = 2.0 Ω (typ. )
