2SC4244 Datasheet - Toshiba Semiconductor

2SC4244 Silicon NPN Transistor

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC4244 2SC4244 UHF TV Tuner RF Amplifier Applications Unit: mm Low noise figure: NF = 4dB (typ.) High power gain: Gpb = 17dB (typ.) Excellent forward AGC characteristics Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Base current Collector current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IB IC PC .

2SC4244_ToshibaSemiconductor.pdf

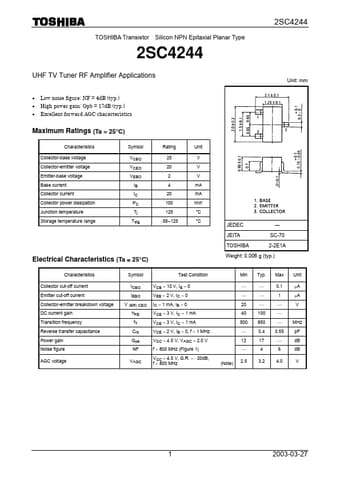

Preview of 2SC4244 PDF
2SC4244 Datasheet Preview Page 2 2SC4244 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC4244

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

141.08 KB

Description:

Silicon npn transistor.
