2SC4248 Datasheet - Toshiba Semiconductor

2SC4248 - Silicon NPN Transistor

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC4248 TV Tuner, UHF Oscillator Applications (common collector) 2SC4248 Unit: mm Transition frequency is high and dependent on current excellently. Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Base current Collector current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IB IC PC Tj Tstg Rating 20 12 3 15 30 100 12.

2SC4248_ToshibaSemiconductor.pdf

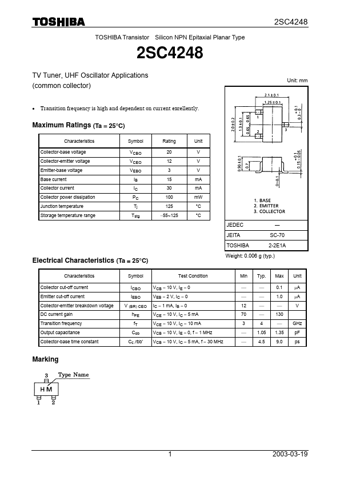

2SC4248 Datasheet Preview — Preview of 2SC4248 PDF

Datasheet Details

Part number:

2SC4248

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

162.50 KB

Description:

Silicon npn transistor.
