2SK2033 Silicon N-Channel MOS Type FET

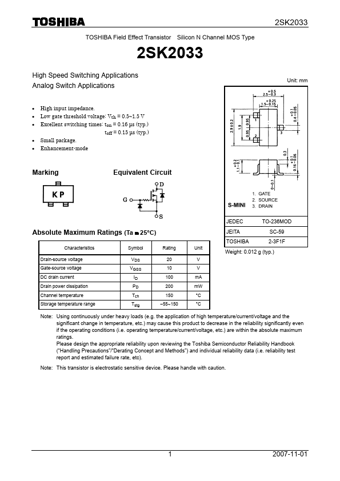

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type 2SK2033 High Speed Switching Applications Analog Switch Applications High input impedance. Low gate threshold voltage: Vth = 0.5~1.5 V Excellent switching times: ton = 0.16 s (typ.) toff = 0.15 s (typ.) Small package. Enhancement-mode Marking Equivalent Circuit 2SK2033 Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Drain-source voltage Gate-source voltage DC drain curr.
