C5354 - 2SC5354

C5354 Description

TOSHIBA Transistor Silicon NPN Triple Diffused Type 2SC5354 High-Speed and High-Voltage Switching Applications Switching Regulator Applications High-S.

C5354 Applications

* Switching Regulator Applications High-Speed DC-DC Converter Applications 2SC5354 Unit: mm
* Excellent switching times: tr = 0.7 μs (max) tf = 0.5 μs (max) (IC = 2 A)
* High breakdown voltage: VCEO = 800 V Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit

📥 Download Datasheet

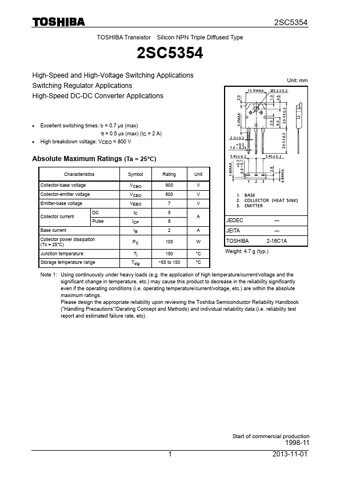

Preview of C5354 PDF
datasheet Preview Page 2 datasheet Preview Page 3
