C5359 Datasheet - Toshiba

C5359 - 2SC5359

TOSHIBA Transistor Silicon NPN Triple Diffused Type 2SC5359 Power Amplifier Applications 2SC5359 Unit: mm High breakdown voltage: VCEO = 230 V Complementary to 2SA1987 Suitable for use in 100-W high fidelity audio amplifier’s output stage.

Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 230 V Collector-emitter voltage VCEO 230 V Emitter-base voltage VEBO 5 V Collector current IC 15 A Base current I

C5359-Toshiba.pdf

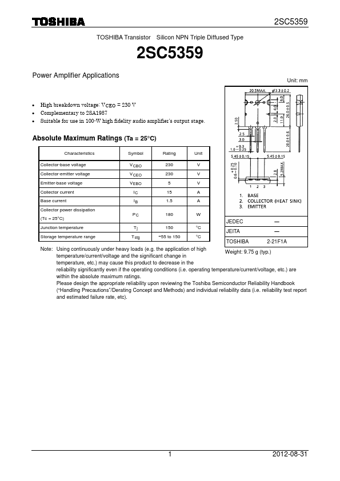

Preview of C5359 PDF
C5359 Datasheet Preview Page 2 C5359 Datasheet Preview Page 3

Datasheet Details

Part number:

C5359

Manufacturer:

Toshiba ↗

File Size:

175.69 KB

Description:

2sc5359.
