C5358 - NPN Transistor

C5358 Description

TOSHIBA Transistor Silicon NPN Triple Diffused Type 2SC5358 Power Amplifier Applications 2SC5358 Unit: mm * High breakdown voltage: VCEO = 2.

C5358 Applications

* 2SC5358 Unit: mm
* High breakdown voltage: VCEO = 230 V
* Complementary to 2SA1986
* Suitable for use in 80-W high fidelity audio amplifier’s output stage Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 230 V Col

📥 Download Datasheet

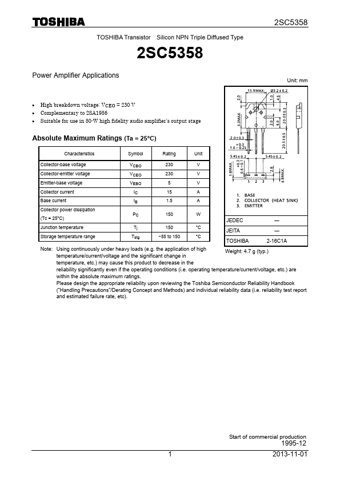

Preview of C5358 PDF
datasheet Preview Page 2 datasheet Preview Page 3
