K2231 Datasheet - Toshiba Semiconductor

K2231 2SK2231

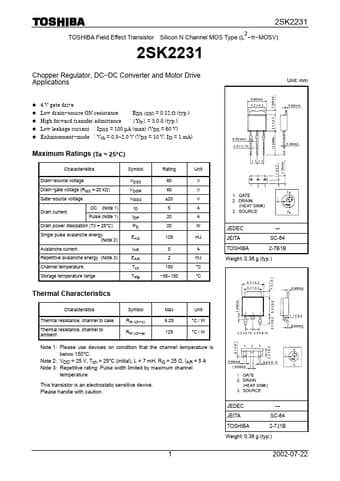

2SK2231 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L2 π MOSV) 2SK2231 Chopper Regulator, DC DC Converter and Motor Drive Applications Unit: mm l 4 V gate drive l Low drain source ON resistance : RDS (ON) = 0.12 Ω (typ.) l High forward transfer admittance : |Yfs| = 5.0 S (typ.) l Low leakage current : IDSS = 100 µA (max) (VDS = 60 V) l Enhancement mode : Vth = 0.8~2.0 V (VDS = 10 V, ID = 1 mA) Maximum Ratings (Ta = 25°C) Characteristic.

K2231-ToshibaSemiconductor.pdf
