K2232 - 2SK2232

K2232 Description

2SK2232 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L *π *MOSV) www.DataSheet4U.com 2 2SK2232 Unit: mm Chopper Regul.

K2232 Applications

* z 4-V gate drive z Low drain
* source ON resistance z High forward transfer admittance z Low leakage current z Enhancement mode : RDS (ON) = 36 mΩ (typ. ) : |Yfs| = 16 S (typ. ) : IDSS = 100 μA (max) (VDS = 60 V) : Vth = 0.8~2.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Ch

📥 Download Datasheet

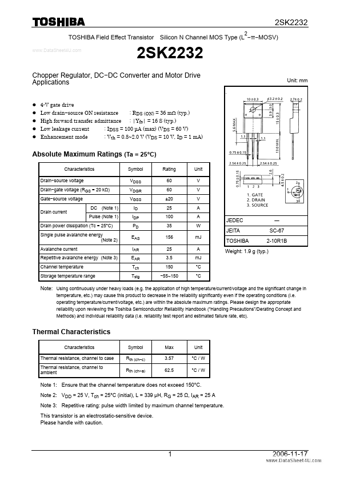

Preview of K2232 PDF
datasheet Preview Page 2 datasheet Preview Page 3
