K2233 - N-Channel MOSFET

K2233 Description

www.DataSheet4U.com 2SK2233 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L *π *MOSV) 2 2SK2233 Chopper Regulator, DC

K2233 Applications

* 4 V gate drive Low drain
* source ON resistance High forward transfer admittance Low leakage current Enhancement
* mode : RDS (ON) = 0.022 Ω (typ. ) : |Yfs| = 27 S (typ. ) Unit: mm : IDSS = 100 µA (max) (VDS = 60 V) : Vth = 0.8~2.0 V (VDS = 10 V, ID = 1 mA) Maximum Ratings (Ta = 25°C) Ch

📥 Download Datasheet

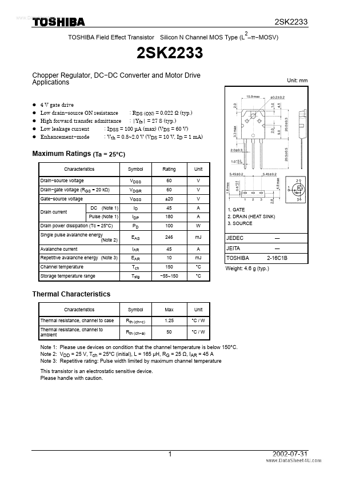

Preview of K2233 PDF
datasheet Preview Page 2 datasheet Preview Page 3
