K2266 Datasheet - Toshiba Semiconductor

K2266 2SK2266

2SK2266 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L2 π MOSV) 2SK2266 Chopper Regulator, DC DC Converter and Motor Drive Applications Unit: mm l 4 V gate drive l Low drain source ON resistance : RDS (ON) = 22 mΩ (typ.) l High forward transfer admittance : |Yfs| = 27 S (typ.) l Low leakage current : IDSS = 100 µA (max) (VDS = 60 V) l Enhancement mode : Vth = 0.8~2.0 V (VDS = 10 V, ID = 1 mA) Maximum Ratings (Ta = 25°C) Characteristics .

K2266-ToshibaSemiconductor.pdf

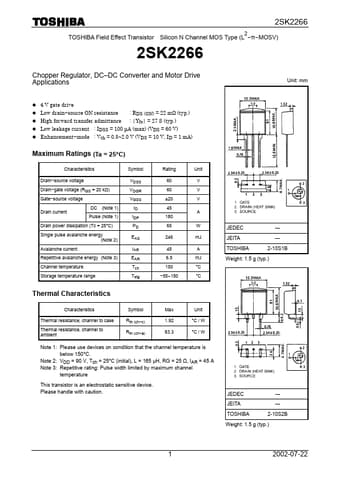

Preview of K2266 PDF
K2266 Datasheet Preview Page 2 K2266 Datasheet Preview Page 3

Datasheet Details

Part number:

K2266

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

258.68 KB

Description:

2sk2266.
