K2837 Datasheet - Toshiba Semiconductor

K2837 Silicon N-Channel MOSFET

2SK2837 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK2837 Chopper Regulator, DC DC Converter and Motor Drive Applications z Low drain source ON resistance z High forward transfer admittance z Low leakage current z Enhancement mode : RDS (ON) = 0.21 Ω (typ.) : |Yfs| = 17 S (typ.) Unit: mm : IDSS = 100 μA (max) (VDS = 500 V) : Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristics Drain source vol.

K2837 Features

* and Foreign Trade Law and the U.S. Export Administration Regulations. Export and re-export of Product or related software or technology are strictly prohibited except in compliance with all applicable export laws and regulations.

* Please contact your TOSHIBA sales representative for details

K2837 Datasheet (485.16 KB)

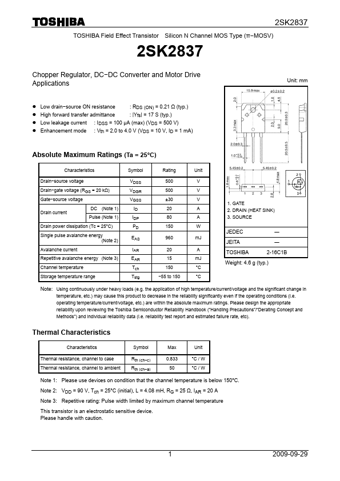

Preview of K2837 PDF

Datasheet Details

Part number:

K2837

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

485.16 KB

Description:

Silicon n-channel mosfet.
