S-AV10L VHF RF Power Amplifier Module

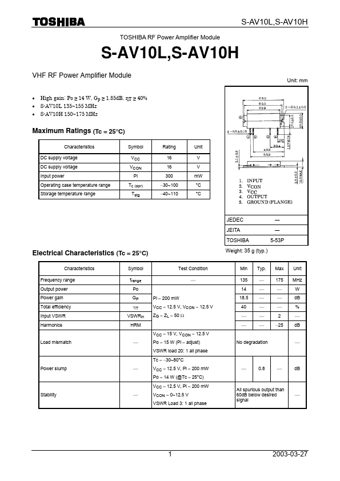

S-AV10L,S-AV10H TOSHIBA RF Power Amplifier Module S-AV10L,S-AV10H VHF RF Power Amplifier Module High gain: Po ≥ 14 W, Gp ≥ 1.85dB, ηT ≥ 40% S-AV10L 135~155 MHz S-AV10H 150~175 MHz Unit: mm Maximum Ratings (Tc = 25°C) Characteristics DC supply voltage DC supply voltage Input power Operating case temperature range Storage temperature range Symbol VCC VCON Pi Tc (opr) Tstg Rating 16 16 300 -30~100 -40~110 Unit V V mW °C °C JEDEC JEITA TOSHIBA ― ― 5-53P Electrical Characterist.
