SSM6P15FE Datasheet - Toshiba Semiconductor

SSM6P15FE P-Channel MOSFET

TOSHIBA Field Effect Transistor Silicon P Channel MOS Type SSM6P15FE High Speed Switching Applications Analog Switch Applications SSM6P15FE Small package Low ON resistance : Ron = 12 Ω (max) (@VGS = 4 V) : Ron = 32 Ω (max) (@VGS = 2.5 V) Absolute Maximum Ratings (Ta = 25°C) (Q1, Q2 Common) Characteristics Symbol Rating Unit Drain-Source voltage VDS 30 V Gate-Source voltage VGSS ±20 V Drain current DC Pulse ID 100 mA IDP.

SSM6P15FE_ToshibaSemiconductor.pdf

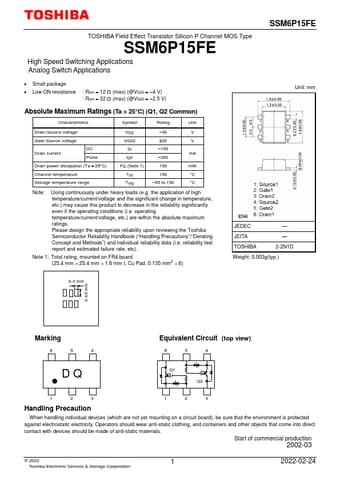

Preview of SSM6P15FE PDF
SSM6P15FE Datasheet Preview Page 2 SSM6P15FE Datasheet Preview Page 3

Datasheet Details

Part number:

SSM6P15FE

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

331.85 KB

Description:

P-channel mosfet.
