TA76431FR - ADJUSTABLE PRECISION SHUNT REGUALTOR

Product Overview

Toshiba Semiconductor

📥 Download Datasheet

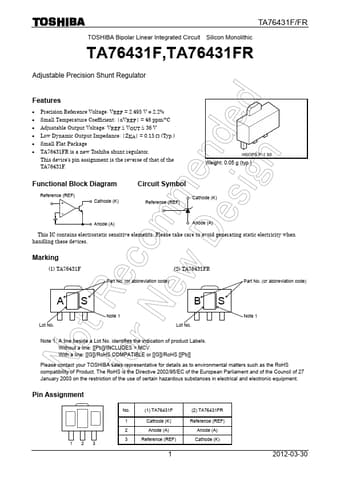

TA76431FR ADJUSTABLE PRECISION SHUNT REGUALTOR by Toshiba Semiconductor - Datasheet Preview — Datasheet preview – TA76431FR

Datasheet Details

Part number	TA76431FR
Manufacturer	Toshiba Semiconductor
File Size	208.69 KB
Description	ADJUSTABLE PRECISION SHUNT REGUALTOR
Datasheet	TA76431FR Datasheet
Note	This datasheet PDF includes multiple part numbers: TA76431FR, TA76431F. Please refer to the document for exact specifications by model.
Additional preview pages of the TA76431FR datasheet.

Product details

Features

Precision Reference Voltage: VREF = 2.495 V ± 2.2%.
Small Temperature Coefficient: |αVREF| = 46 ppm/°C.
Adjustable Output Voltage: VREF ≤ VOUT ≤ 36 V.
Low Dynamic Output Impedance: |ZKA| = 0.15 Ω (Typ. ).
Small Flat Package.
TA76431FR is a new Toshiba shunt regulator. This device’s pin assignment is the reverse of that of the TA76431F. Weight: 0.05 g (typ. ) Functional Block Diagram Reference (REF) Cathode (K) Circuit Symbol Reference (R.
