TK20E60W - Silicon N-Channel MOSFET

Product Overview

Toshiba Semiconductor

Part number	TK20E60W
Manufacturer	Toshiba Semiconductor
File Size	249.05 KB
Description	Silicon N-Channel MOSFET
Datasheet	TK20E60W Datasheet

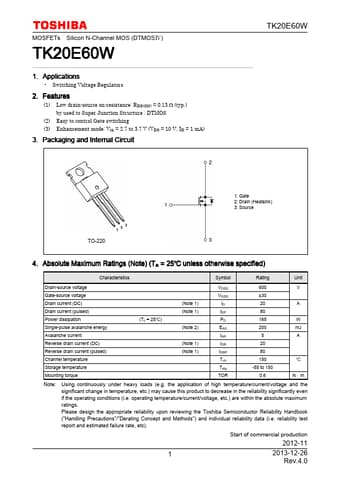

Additional preview pages of the TK20E60W datasheet.

(1) (2) (3) Low drain-source on-resistance: RDS(ON) = 0.13 Ω (typ. ) by used to Super Junction Structure : DTMOS Easy to control Gate switching Enhancement mode: Vth = 2.7 to 3.7 V (VDS = 10 V, ID = 1 mA) 3. Packaging and Internal Circuit 1: Gate 2: Drain (Heatsink) 3: Source TO-220 4. Absolute Maximum Ratings (Note) (Ta = 25 unless otherwise specified) Characteristics Drain-source voltage Gate-source voltage Drain current (DC) Drain current (pulsed) Power dissipation Single-pulse avalanche.
