TK40P03M1 - Silicon N-Channel MOSFET

Features

  • (1) High-speed switching (2) Low gate charge: QSW = 5.7 nC (typ. ) (3) Low drain-source on-resistance: RDS(ON) = 8.3 mΩ (typ. ) (VGS = 10 V) (4) Low leakage current: IDSS = 10 µA (max) (VDS = 30 V) (5) Enhancement mode: Vth = 1.3 to 2.3 V (VDS = 10 V, ID = 0.1 mA) 3. Packaging and Internal Circuit TK40P03M1 DPAK 1: Gate 2: Drain (heatsink) 3: Source ©2016 Toshiba Corporation 1 Start of commercial production 2009-02 2016-02-17 Rev.3.0 TK40P03M1 4. Absolute Maximum Ratings (Note) (Ta = 25 u.

📥 Download Datasheet

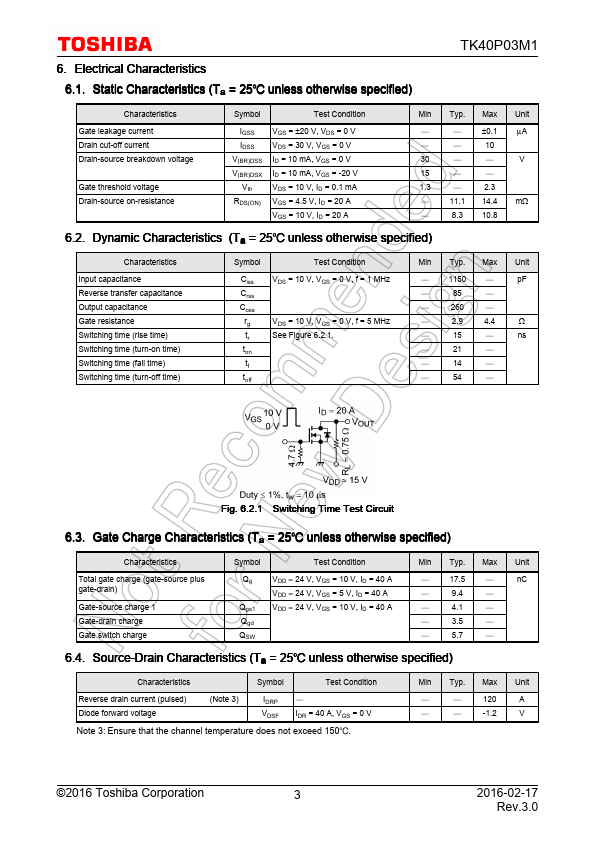

Datasheet preview – TK40P03M1

📁 Similar Datasheet

Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text
MOSFETs Silicon N-Channel MOS (U-MOS-H) TK40P03M1 1. Applications • Switching Voltage Regulators • Motor Drivers • Power Management Switches 2. Features (1) High-speed switching (2) Low gate charge: QSW = 5.7 nC (typ.) (3) Low drain-source on-resistance: RDS(ON) = 8.3 mΩ (typ.) (VGS = 10 V) (4) Low leakage current: IDSS = 10 µA (max) (VDS = 30 V) (5) Enhancement mode: Vth = 1.3 to 2.3 V (VDS = 10 V, ID = 0.1 mA) 3. Packaging and Internal Circuit TK40P03M1 DPAK 1: Gate 2: Drain (heatsink) 3: Source ©2016 Toshiba Corporation 1 Start of commercial production 2009-02 2016-02-17 Rev.3.0 TK40P03M1 4.
