TK50F15J1 - MOSFETs

Product Overview

Toshiba Semiconductor

Part number	TK50F15J1
Manufacturer	Toshiba Semiconductor
File Size	321.88 KB
Description	MOSFETs
Datasheet	TK50F15J1 Datasheet

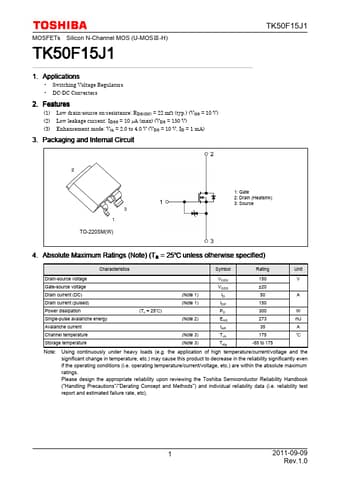

Additional preview pages of the TK50F15J1 datasheet.

(1) (2) (3) Low drain-source on-resistance: RDS(ON) = 22 mΩ (typ. ) (VGS = 10 V) Low leakage current: IDSS = 10 µA (max) (VDS = 150 V) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) 3. Packaging and Internal Circuit 1: Gate 2: Drain (Heatsink) 3: Source TO-220SM(W) 4. Absolute Maximum Ratings (Note) (Ta = 25 unless otherwise specified) Characteristics Drain-source voltage Gate-source voltage Drain current (DC) Drain current (pulsed) Power dissipation Single-pulse avalanche ener.
