TLP722 Datasheet - Toshiba Semiconductor

TLP722 Photocoupler

TLP722 TENTATIVE TOSHIBA Photocoupler Photo Diode TLP722 Unit in mm The TOSHIBA TLP722 consists of a photo diode optically coupled to a gallium arsenide infrared emitting diode in a four lead plastic DIP (DIP4). TLP722: Single circuit Cathode anode voltage: 30V (max) Current transfer ratio: 0.1% (min) Input / output isolation voltage: 4000Vrms (min) Operating temperature range: 55~100°C Storage temperature range: <.

TLP722 Datasheet (126.63 KB)

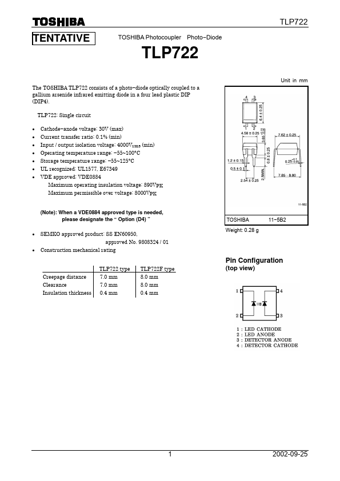

Preview of TLP722 PDF

Datasheet Details

Part number:

TLP722

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

126.63 KB

Description:

Photocoupler.
