2SA490 - Silicon PNP Transistor

Features

  • Complementary to 2SC790 . 10 Watts Output.

📥 Download Datasheet

Datasheet preview – 2SA490

📁 Similar Datasheet

  • 2SA490 - Silicon POwer Transistors (SavantIC)
  • 2SA490 - PNP Transistor (INCHANGE)
  • 2SA493 - Silicon PNP Transistor (ETC)
  • 2SA495 - Silicon PNP Transistor (ETC)
  • 2SA495 - Silicon PNP Transistor (NJS)
  • 2SA496 - PNP Transistor (INCHANGE)
  • 2SA497 - SILICON PNP EPITAXIAL TRANSISTOR (ETC)
  • 2SA498 - SILICON PNP EPITAXIAL TRANSISTOR (ETC)
  • 2SA429 - PNP Transistor (Sanyo)
  • 2SA429G - PNP Transistor (Sanyo)
Other Datasheets by Toshiba
  • 2SA495 - Silicon PNP Transistor
  • 2SA496 - Silicon PNP Transistor
  • 2SA499 - Silicon PNP Epitaxial Transistor
  • 2SA473 - SILICON PNP TRANSISTOR
  • 2SA1021 - Silicon PNP Transistor
  • 2SA1090 - Silicon PNP transistor
  • 2SA1093 - Silicon PNP Transistor
  • 2SA1094 - Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text

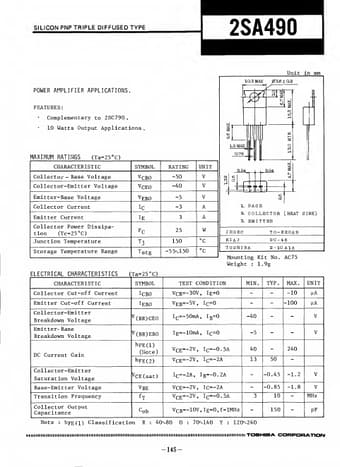

SILICON PNP TRIPLE DIFFUSED TYPE 2SA490 POWER AMPLIFIER APPLICATIONS. FEATURES: • Complementary to 2SC790 . 10 Watts Output Applications Unit in mm 103 MAX 03.6±O.3 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL RATING UNIT Collector - Base Voltage VcBO -50 V Collector-Emitter Voltage v CE0 -40 V Emitter-Base Voltage Collector Current Emitter Current Collector Power Dissipation (Tc=25°C) Junction Temperature Storage Temperature Range v EB0 ic IE pC T J Tstg -5 V -3 A 3 A 25 W 150 °C -55%150 °C 1. BASE 2. COLLECTOR (HEAT SINK) 3. EMITTER EIAJ TOSHIBA T0-220AB 2-10 A1A Mounting Kit No. AC75 Weight : 1.
