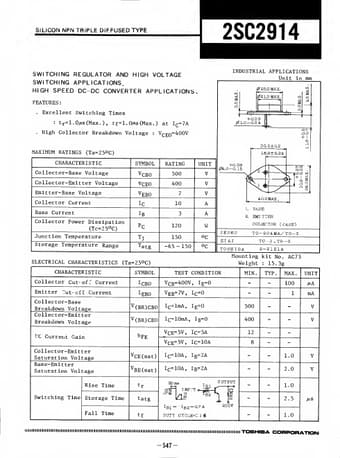

Part number:
2SC2914
Manufacturer:
File Size:
124.38 KB
Description:
Silicon npn transistor.
* . Excellent Switching Times : t r=1.0/
* s(Max.), tf=l. 0/
* s(Max. ) at I C=7A . High Collector Breakdown Voltage : VCEO=400V INDUSTRIAL APPLICATIONS Unit in mm 025.0 MAX- MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector
2SC2914
124.38 KB
Silicon npn transistor.
