2SD1431 - NPN Transistor

2SD1431 Description

A: ) 2SD1431 vo f SILICON NPNTRIPLE DIFFUSED MESA TYPE COLOR TV HORIZONTAL OUTPUT APPLICATIONS..

2SD1431 Features

* . High Voltage : VCBo=1500V . Low Saturation Voltage . High Speed : vCE(sat)=5V(Max. ) (I C=4A, I B=0.8A) : tf=l . 0As(Max. . Glass Passivated Collector-Base Junction Unit in mm 160MAX. 03.6 ±0.2 1.5 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL RATING UNIT Collector-Base Voltage VCBO 1

📥 Download Datasheet

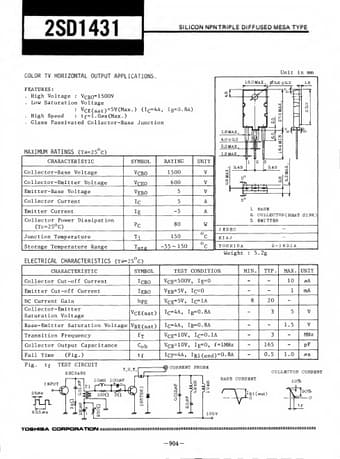

Preview of 2SD1431 PDF
