TC74VHC240FK, TC74VHC240F Octal Bus Buffer

TC74VHC240FK Description

TC74VHC240,244F/FK TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74VHC240F, TC74VHC240FK TC74VHC244F, TC74VHC244FK Octal Bus Buffer T.

TC74VHC240FK Features

* High speed: tpd = 3.9 ns (typ. ) at VCC = 5 V
* Low power dissipation: ICC = 4 µA (max) at Ta = 25°C
* High noise immunity: VNIH = VNIL = 28% VCC (min)
* Power down protection is provided on all inputs.
* Balanced propagation delays: tpLH ∼
* tpHL
* Wide operating vol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TC74VHC240FK, TC74VHC240F. Please refer to the document for exact specifications by model.

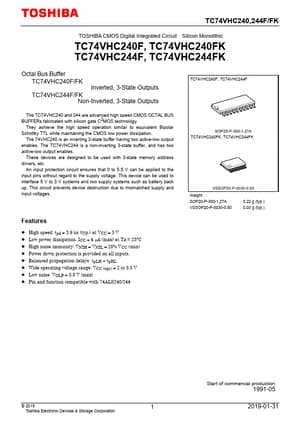

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TC74VHC240FK, TC74VHC240F
Manufacturer
Toshiba ↗
File Size
275.93 KB
Datasheet
TC74VHC240F_ToshibaSemiconductor.pdf
Description
Octal Bus Buffer
Note
This datasheet PDF includes multiple part numbers: TC74VHC240FK, TC74VHC240F.
Please refer to the document for exact specifications by model.
