TC74VHC240FW, OCTAL BUS BUFFER

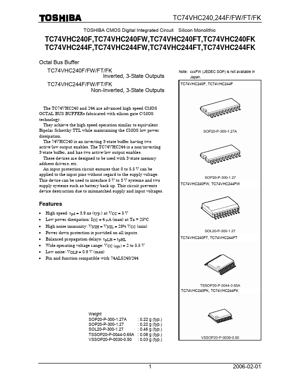

TC74VHC240,244F/FW/FT/FK TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74VHC240F,TC74VHC240FW,TC74VHC240FT,TC74VHC240FK TC74VHC244F,TC74VHC244FW,TC74VHC244FT,TC74VHC244FK Octal Bus Buffer TC74VHC240F/FW/FT/FK Inverted, 3-State Outputs TC74VHC244F/FW/FT/FK Non-Inverted, 3-State Outputs Note: xxxFW (JEDEC SOP) is not available in Japan.

TC74VHC240F, TC74VHC244F The TC74VHC240 and 244 are advanced high speed CMOS OCTAL BUS BUFFERs fabricated with silicon gate C2MOS technology.

The

TC74VHC240FW Features

* High speed: tpd = 3.9 ns (typ.) at VCC = 5 V

* Low power dissipation: ICC = 4 µA (max) at Ta = 25°C

* High noise immunity: VNIH = VNIL = 28% VCC (min)

* Power down protection is provided on all inputs.

* Balanced propagation delays: tpLH ∼

* tpHL
