TEC9016 - Silicon NPN Transistor

Datasheet Summary

Features

. Small Collector Output Capacitance : C b=1.2pF(Typ. ) . Low Noise Figure : NF=2. 5dB(Typ. ) (f=l 00MHz) Unit in mm 5.1 MAX. " (14 5 0.55 MAX. VJ 1 0.45 . u r in 5< CO !^ F- CO s cS L.

Toshiba

📥 Download Datasheet

Datasheet Details

Part number	TEC9016
Manufacturer	Toshiba
File Size	216.47 KB
Description	Silicon NPN Transistor
Datasheet	TEC9016 Datasheet
Additional preview pages of the TEC9016 datasheet.

📁 Similar Datasheet

TEC9902B - Alarm clock and radio frequency LCD display dedicated IC (ETC)
TEC1-00705T125 - Thermoelectric Cooler (Roithner)
TEC1-12703 - Thermoelectric Cooler (HB)
TEC1-12703 - Thermoelectric (ETC)
TEC1-12703 - Thermoelectric Module (Creative technology)
TEC1-12704 - Thermoelectric cooling module (WELLEN TECHNOlOGY)
TEC1-12705 - Thermoelectric Cooler (HB)
TEC1-12706 - Thermoelectric Cooler (HB)
TEC1-12708 - Thermoelectric Cooler (HB)
TEC1-12710 - Thermoelectric Cooler (HB)

Other Datasheets by Toshiba

TEC9011 - Silicon NPN Transistor
TEC9012 - Silicon PNP Transistor
TEC9013 - Silicon NPN Transistor
TEC9014 - Silicon NPN Transistor
TEC9015 - Silicon PNP Transistor
TEC8012 - Silicon PNP Transistor
TEC8013 - Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text

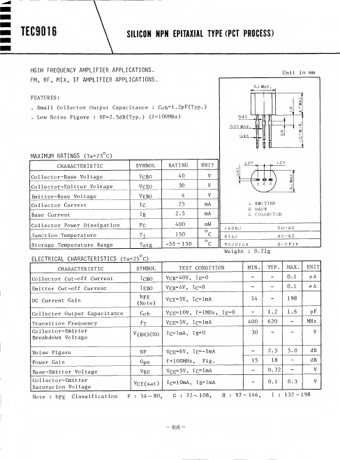

TEC9016 SILICON NPN EPITAXIAL TYPE (PCT PROCESS) HGIH FREQUENCY AMPLIFIER APPLICATIONS. FM, RF, MIX, IF AMPLIFIER APPLICATIONS. FEATURES . Small Collector Output Capacitance : C b=1.2pF(Typ.) . Low Noise Figure : NF=2. 5dB(Typ. ) (f=l 00MHz) Unit in mm 5.1 MAX. " (14 5 0.55 MAX. VJ 1 0.45 . u r in 5< CO !^ F- CO s cS L MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL RATING UNIT 1.27 , 1-27 Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current VCBO VCEO VeBO ic IB 40 V 30 V 4 V 25 mA 2.5 mA *V fT .1 < 3 i. EMITTER 2. BASE 3.
