TK4A60DA Datasheet - Toshiba

TK4A60DA N-Channel MOSFET

TK4A60DA TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSⅦ) TK4A60DA Switching Regulator Applications Low drain-source ON resistance: RDS (ON) = 1.7 Ω (typ.) High forward transfer admittance: ⎪Yfs⎪ = 2.2 S (typ.) Low leakage current: IDSS = 10 μA (VDS = 600 V) Enhancement-mode: Vth = 2.4 to 4.4 V (VDS = 10 V, ID = 1 mA) Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Drain-source voltage Gate-source voltage DC Drain current.

TK4A60DA_Toshiba.pdf

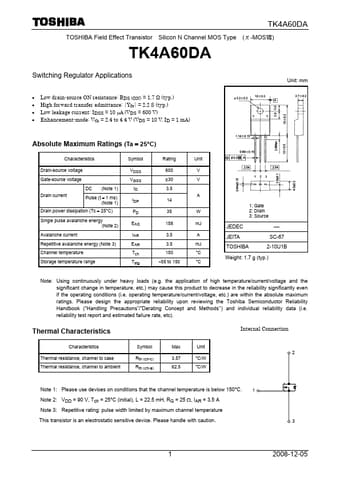

Preview of TK4A60DA PDF
TK4A60DA Datasheet Preview Page 2 TK4A60DA Datasheet Preview Page 3

Datasheet Details

Part number:

TK4A60DA

Manufacturer:

Toshiba ↗

File Size:

250.90 KB

Description:

N-channel mosfet.
