TPCA8042 Datasheet - Toshiba

TPCA8042 Silicon N-Channel MOSFET

TPCA8042 TOSHIBA Field Effect Transistor Silicon N-Channel MOS Type (U-MOSⅣ) TPCA8042 Lithium-Ion Battery Applications Notebook PC Applications Portable Equipment Applications Unit: mm 1.27 0.4 ± 0.1 8 0.05 M A 5 6.0 ± 0.3 5.0 ± 0.2 Small footprint due to a small and thin package Low drain-source ON-resistance: RDS (ON) = 2.6 mΩ (typ.) High forward transfer admittance: |Yfs| =94 S (typ.) Low leakage current: IDSS = 10 μA (max) (VDS = 30 V) .

TPCA8042 Datasheet (177.19 KB)

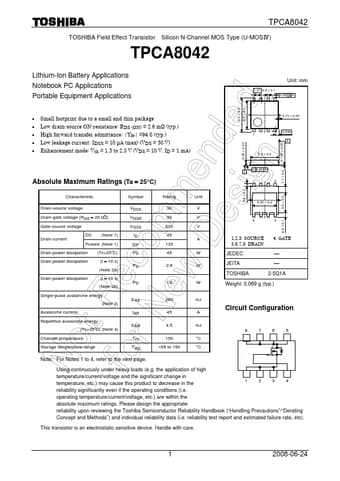

Preview of TPCA8042 PDF

Datasheet Details

Part number:

TPCA8042

Manufacturer:

Toshiba ↗

File Size:

177.19 KB

Description:

Silicon n-channel mosfet.
