TPCA8046-H Datasheet - Toshiba

TPCA8046-H Silicon N-Channel MOSFET

TPCA8046-H TOSHIBA Field Effect Transistor Silicon N-Channel MOS Type (U-MOSⅥ-H) TPCA8046-H Switching Regulator Applications Motor Drive Applications DC-DC Converter Applications Unit: mm 1.27 0.4 ± 0.1 8 0.05 M A 5 6.0 ± 0.3 5.0 ± 0.2 Small footprint due to a small and thin package High-speed switching Small gate charge: QSW = 15 nC (typ.) Low drain-source ON-resistance: RDS (ON) = 3.5 mΩ (typ.) High forward transfer admittance: |Yfs| = .

TPCA8046-H Datasheet (217.95 KB)

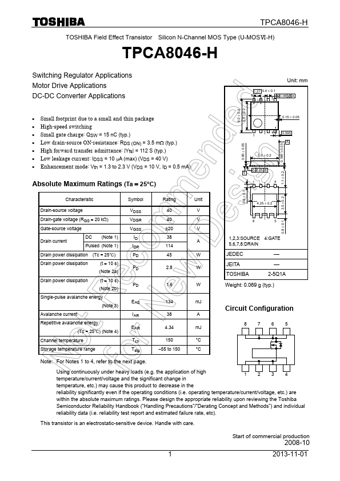

Preview of TPCA8046-H PDF

Datasheet Details

Part number:

TPCA8046-H

Manufacturer:

Toshiba ↗

File Size:

217.95 KB

Description:

Silicon n-channel mosfet.
