TPH1R005PL Silicon N-channel MOSFET

TPH1R005PL Description

MOSFETs Silicon N-channel MOS (U-MOS-H) TPH1R005PL 1.Applications * High-Efficiency DC-DC Converters * Switching Voltage Regulators .

TPH1R005PL Features

* (1) High-speed switching (2) Small gate charge: QSW = 34 nC (typ. ) (3) Small output charge: Qoss = 98 nC (typ. ) (4) Low drain-source on-resistance: RDS(ON) = 0.8 mΩ (typ. ) (VGS = 10 V) (5) Low leakage current: IDSS = 10 µA (max) (VDS = 45 V) (6) Enhancement mode: Vth = 1.4 to 2.4 V (VDS = 10 V, ID =

TPH1R005PL Applications

* High-Efficiency DC-DC Converters

📥 Download Datasheet

Preview of TPH1R005PL PDF

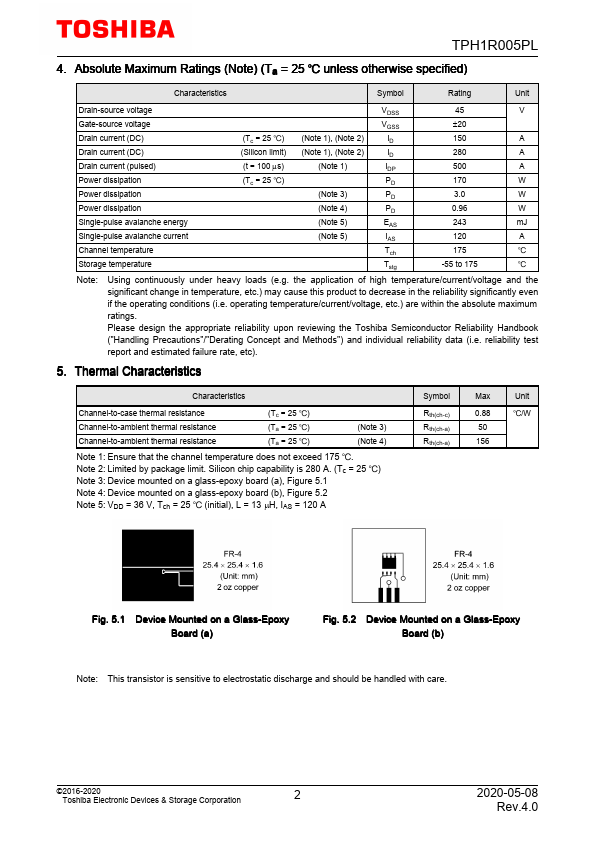

datasheet Preview Page 2 datasheet Preview Page 3
