Part number:
TTA012
Manufacturer:
File Size:
298.82 KB
Description:

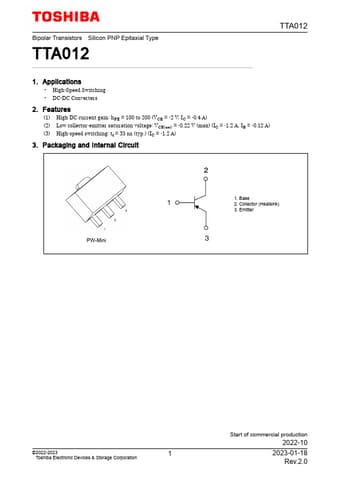

Silicon pnp epitaxial type bipolar transistors.
* (1) High DC current gain: hFE = 100 to 200 (VCE = -2 V, IC = -0.4 A) (2) Low collector-emitter saturation voltage: VCE(sat) = -0.22 V (max) (IC = -1.2 A, IB = -0.12 A) (3) High-speed switching: tf = 35 ns (typ.) (IC = -1.2 A) 3. Packaging and Internal Circuit PW-Mini 1. Base 2. Collector (Heatsink
TTA012
298.82 KB
Silicon pnp epitaxial type bipolar transistors.
