20FL2C41A Datasheet - ToshibaSemiconductor

20FL2C41A HIGH EFFICIENCY DIODE STACK

20DL2C41A,20FL2C41A,20GL2C41A TOSHIBA HIGH EFFICIENCY DIODE STACK (HED) SILICON EPITAXIAL TYPE 20DL2C41A,20FL2C41A,20GL2C41A Switching Mode Power Supply Applications Converter & Chopper Applications Unit: mm z Repetitive Peak Reverse Voltage: VRRM = 200 V, 300 V, 400 V z Average Output Rectified Current: IO = 20 A z Ultra Fast Reverse-Recovery Time: trr = 35 ns (Max) z Low Switching Losses and Output Noise Absolute Maximum Ratings (Ta = 25°C) CHARACTERISTIC SYMBOL RATING UNIT 20DL2C41A.

20FL2C41A_ToshibaSemiconductor.pdf

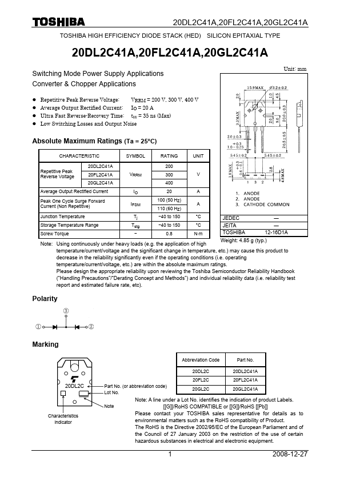

Preview of 20FL2C41A PDF
20FL2C41A Datasheet Preview Page 2 20FL2C41A Datasheet Preview Page 3

Datasheet Details

Part number:

20FL2C41A

Manufacturer:

Toshiba ↗Semiconductor

File Size:

364.27 KB

Description:

High efficiency diode stack.
