20FL2CZ47A HIGH EFFICIENCY DIODE STACK

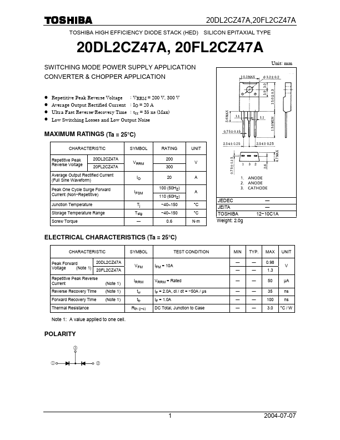

20DL2CZ47A,20FL2CZ47A TOSHIBA HIGH EFFICIENCY DIODE STACK (HED) SILICON EPITAXIAL TYPE 20DL2CZ47A, 20FL2CZ47A SWITCHING MODE POWER SUPPLY APPLICATION CONVERTER & CHOPPER APPLICATION Unit: mm Repetitive Peak Reverse Voltage : VRRM = 200 V, 300 V Average Output Rectified Current : IO = 20 A Ultra Fast Reverse-Recovery Time : trr = 35 ns (Max) Low Switching Losses and Low Output Noise MAXIMUM RATINGS (Ta = 25°C) CHARACTERISTIC Repetitive Peak Reverse Voltage 20DL2CZ47A 20FL2CZ47A Average Ou.
