20FL2CZ51A HIGH EFFICIENCY DIODE STACK

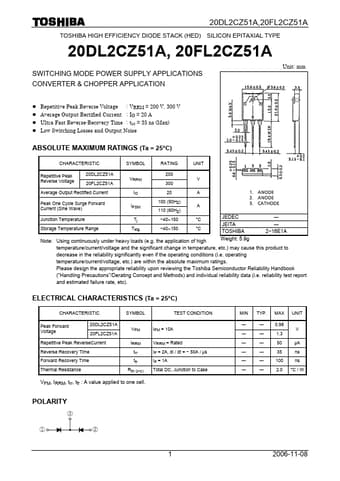

20DL2CZ51A,20FL2CZ51A TOSHIBA HIGH EFFICIENCY DIODE STACK (HED) SILICON EPITAXIAL TYPE 20DL2CZ51A, 20FL2CZ51A SWITCHING MODE POWER SUPPLY APPLICATIONS CONVERTER & CHOPPER APPLICATION Unit: mm z Repetitive Peak Reverse Voltage : VRRM = 200 V, 300 V z Average Output Rectified Current : IO = 20 A z Ultra Fast Reverse-Recovery Time : trr = 35 ns (Max) z Low Switching Losses and Output Noise ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) CHARACTERISTIC SYMBOL RATING UNIT Repetitive Peak Reverse Volta.
