20FL2C48A Datasheet - ToshibaSemiconductor

20FL2C48A HIGH EFFICIENCY DIODE STACK

20DL2C48A,U20DL2C48A,20FL2C48A,U20FL2C48A TOSHIBA HIGH EFFICIENCY DIODE STACK (HED) SILICON EPITAXIAL TYPE 20DL2C48A, U20DL2C48A, 20FL2C48A, U20FL2C48A SWITCHING MODE POWER SUPPLY APPLICATION CONVERTER & CHOPPER APPLICATION z Repetitive Peak Reverse Voltage : VRRM = 200 V, 300 V z Average Output Rectified Current : IO = 20 A z Ultra Fast Reverse-Recovery Time : trr = 35 ns (Max) z Low Switching Losses and Output Noise 20DL2C48A, 20FL2C48A, Unit in mm U20DL2C48A, U20FL2C48A 3± 0.2 JEDEC JEITA.

20FL2C48A_ToshibaSemiconductor.pdf

Preview of 20FL2C48A PDF

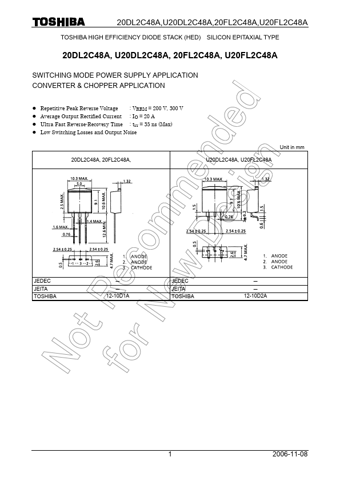

20FL2C48A Datasheet Preview Page 2 20FL2C48A Datasheet Preview Page 3

Datasheet Details

Part number:

20FL2C48A

Manufacturer:

Toshiba ↗Semiconductor

File Size:

345.22 KB

Description:

High efficiency diode stack.
