TSM9634

SOT23 Precision Current-Sense Amplifier

TSM9634 Features

* Alternate-source for MAX9634

* Ultra-Low Supply Current: 1μA

* Wide Input Common Mode Range: +1.6V to +28V

* Low Input Offset Voltage: 250µV (max)

* Low Gain Error:

TSM9634 General Description

The voltage-output TSM9634 current-sense amplifiers are electrically and form-factor identical to the MAX9634 current-sense amplifiers. Consuming a very low 1μA supply current, the TSM9634 high-side current-sense amplifiers exhibit a 250-µV (max) VOS and a 0.5% (max) gain error, both specifications .

TSM9634 Datasheet (895.33 KB)

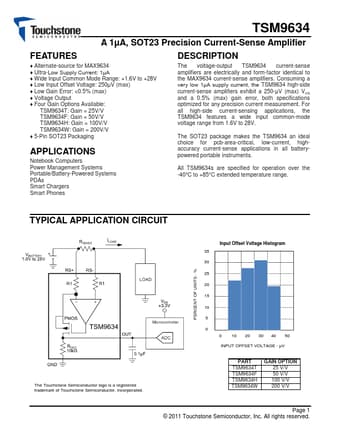

Preview of TSM9634 PDF

Datasheet Details

Part number:

TSM9634

Manufacturer:

Touchstone Semiconductor

File Size:

895.33 KB

Description:

Sot23 precision current-sense amplifier.
