TGA2501-GSG Datasheet, Amplifier, TriQuint Semiconductor

TGA2501-GSG Features

  • Amplifier
  •  Frequency Range: 6 - 18 GHz
  •  Saturated Output Power: 34.5 dBm
  •  Small Signal Gain: 26 dB
  •  Bias: Vd = 8 V, Idq = 1.2 A, Vg = -0.6 V typical Genera

PDF File Details

Part number:

TGA2501-GSG

Manufacturer:

TriQuint Semiconductor

File Size:

398.36kb

Download:

📄 Datasheet

Description:

2.8 watt 6-18 ghz power amplifier. The TriQuint TGA2501-GSG provides 26 dB of small signal gain and 2.8 W of output power across 6-18 GHz. The TGA2501-GSG is designed u

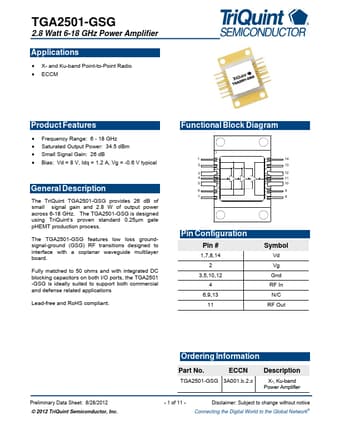

Datasheet Preview: TGA2501-GSG 📥 Download PDF (398.36kb)
Page 2 of TGA2501-GSG Page 3 of TGA2501-GSG

TGA2501-GSG Application

  • Applications
  •  X- and Ku-band Point-to-Point Radio
  •  ECCM Product Features
  •  Frequency Range: 6 - 18 GHz
  •  Satu
