TGA2503-SM Datasheet, Amplifier, TriQuint Semiconductor

TGA2503-SM Features

  • Amplifier
  • TGA2503-SM Typical Frequency Range: 12.5 - 16 GHz 32 dBm Nominal Psat 32 dB Nominal Gain 37 dBm Output TOI @ Pin =

PDF File Details

Part number:

TGA2503-SM

Manufacturer:

TriQuint Semiconductor

File Size:

673.14kb

Download:

📄 Datasheet

Description:

32 dbm ku-band amplifier. The TriQuint TGA2503-SM is a Ku-Band Packaged Power Amplifier. The TGA2503SM operates from 12.5-16 GHz and is designed using TriQuint

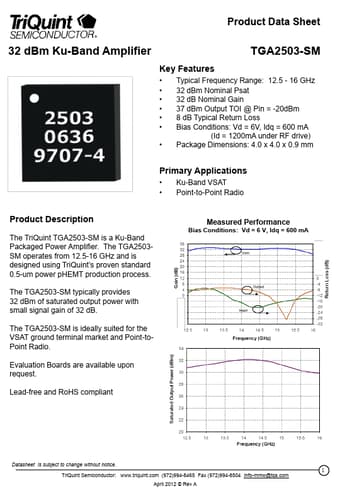

Datasheet Preview: TGA2503-SM 📥 Download PDF (673.14kb)
Page 2 of TGA2503-SM Page 3 of TGA2503-SM

TGA2503-SM Application

  • Applications
  • Ku-Band VSAT Point-to-Point Radio Product Description The TriQuint TGA2503-SM is a Ku-Band Packaged Power Amplifie

TAGS

TGA2503-SM
dBm
Ku-Band
Amplifier
TriQuint Semiconductor
