TGA2925-SG

5.6 Watt 3.5GHz Packaged HPA

TGA2925-SG Features

* TGA2925-SG 3.5 GHz Application Frequency Range 11 dB Nominal Gain 2.5%EVM @29dBm OFDM signal at 3.5GHz 37.5 dBm Nominal Psat Internally Partially Matched IMD3 -50 dBc @ 24 dBm SCL, Typical

TGA2925-SG General Description

The TGA2925-SG HPA provides 11 dB of gain, 5.6 W of output power at 3.5 GHz and 2.5% EVM at 29 dBm output power. The device is ideally suited for high linearity, high power wireless data applications such as 802.16 and WiMax. The package has a high thermal conductivity copper alloy base. Internal pa.

TGA2925-SG Datasheet (203.06 KB)

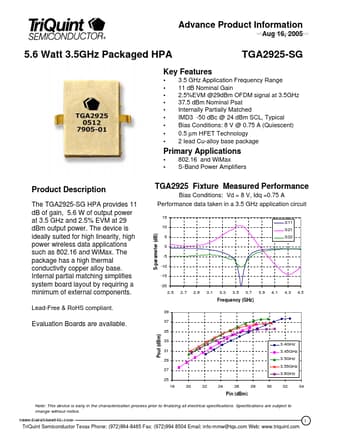

Preview of TGA2925-SG PDF

Datasheet Details

Part number:

TGA2925-SG

Manufacturer:

TriQuint Semiconductor

File Size:

203.06 KB

Description:

5.6 watt 3.5ghz packaged hpa.
