TGA2237-SM - 10W GaN Power Amplifier

Product Overview

Qorvo

Datasheet Details

Part number	TGA2237-SM
Manufacturer	Qorvo
File Size	1.12 MB
Description	10W GaN Power Amplifier
Datasheet	TGA2237-SM Datasheet

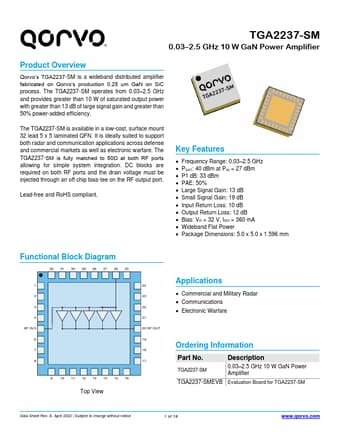

Additional preview pages of the TGA2237-SM datasheet.

Product details

Description

TGA2237-SM 0.03 2.5 GHz 10 W GaN Power Amplifier TGA2237-SMEVB Evaluation Board for TGA2237-SM Data Sheet Rev.E, April 2022 | Subject to change without notice 1 of 18 www.qorvo.com ® Absolute Maximum Ratings Parameter Drain Voltage (VD) Value / Rang 40eV Gate Voltage Range (VG) -8 to 0 V Drain Current (ID) 1.2 A Gate Current (IG) 2.4 to 8.4 mA Power Dissipation (PDISS), 85 °C 19 W Input Power (PIN), CW, 50 Ω, 85 °C 33 dBm( ) Input Power (PIN), CW, VSWR

Features

Frequency Range: 0.03.
2.5 GHz.
PSAT: 40 dBm at PIN = 27 dBm.
P1 dB: 33 dBm.
PAE: 50%.
Large Signal Gain: 13 dB.
Small Signal Gain: 19 dB.
Input Return Loss: 10 dB.
Output Return Loss: 12 dB.
Bias: VD = 32 V, IDQ = 360 mA.
Wideband Flat Power.
Package Dimensions: 5.0 x 5.0 x 1.596 mm Functional Block Diagram 32 31 30 29 28 27 26 25 1 2 3 4 RF IN 5 6 7 8 24 23 22 21 20 RF OUT 19 18 17 9.
