TGS8122-SCC

SPDT FET Switch

TGS8122-SCC Features

* and Performance

* 8 to 11 GHz Frequency Range 0.9 dB Typical Insertion Loss 40 dB Typical Isolation at 9 GHz 1.5:1 Typical Input SWR at Midband 1.4:1 Typical Output SWR at Midband Less Than 2 ns Rise/Fall Time 1.7018 x 0.7112 x 0.15

TGS8122-SCC General Description

The TriQuint TGS8122-SCC is a monolithic single-pole, double-throw (SPDT) GaAs FET switch designed for 8 to 11 GHz. This device has low insertion loss, low current consumption of less than 50 mA with control voltages of -7 V and 0 V, and rise and fall times are less than 2 ns. Ground is provided to .

TGS8122-SCC Datasheet (590.61 KB)

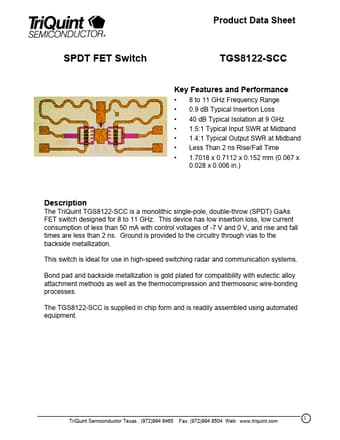

Preview of TGS8122-SCC PDF

Datasheet Details

Part number:

TGS8122-SCC

Manufacturer:

TriQuint Semiconductor

File Size:

590.61 KB

Description:

Spdt fet switch.
