TGS2304 Datasheet - TriQuint Semiconductor

TGS2304 - DC- 20 GHz SP4T PIN Switch

The TriQuint TGS2304-SCC is a GaAs monolithic PIN-diode single-pole, four-throw switch, in chip form, that operates from DC to 20 GHz.

Each arm consists of one series and two shunt PIN diodes.

At a bias current of 10 mA per RF output arm, typical midband insertion loss is 0.6 dB; midband return loss

TGS2304 Features

* and Performance

* DC to 20 GHz Frequency Range 0.6 dB Typical Midband Insertion Loss 38 dB Typical Midband Isolation Typical Input / Output SWR 1.2:1, Midband 23 dB Typical Input Power at 1 dB Gain Compression 2.540 x 3.556 x 0.1016 mm (0.100

TGS2304_TriQuintSemiconductor.pdf

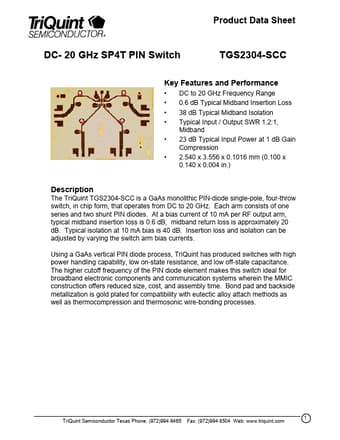

Preview of TGS2304 PDF
TGS2304 Datasheet Preview Page 2 TGS2304 Datasheet Preview Page 3

Datasheet Details

Part number:

TGS2304

Manufacturer:

TriQuint Semiconductor

File Size:

1.07 MB

Description:

Dc- 20 ghz sp4t pin switch.
