TGS2306 Datasheet, Switch, TriQuint Semiconductor

TGS2306 Features

  • Switch and Performance DC - 18 GHz Frequency Range 29 dBm Input P1dB @ VC = -5V > 30 dB Isolation <1 nsec switching speed Control Voltage Application from Either Side of MMIC -3V or -5V Contro

PDF File Details

Part number:

TGS2306

Manufacturer:

TriQuint Semiconductor

File Size:

428.94kb

Download:

📄 Datasheet

Description:

High power dc - 18 ghz spdt fet switch. The TriQuint TGS2306 is a GaAs singlepole, double-throw (SPDT) FET monolithic switch designed to operate over the DC to 18GHz frequen

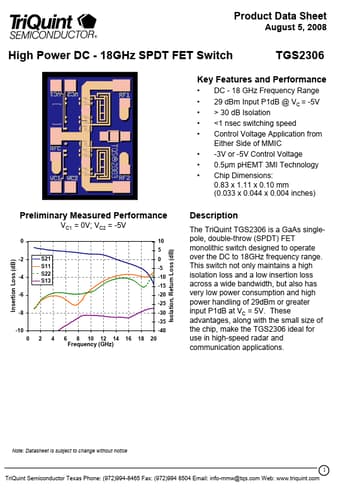

Datasheet Preview: TGS2306 📥 Download PDF (428.94kb)
Page 2 of TGS2306 Page 3 of TGS2306

TGS2306 Application

  • Applications Isolation, Return Loss (dB) 5 www.DataSheet.net/ Insertion Loss (dB) 0 -5 -10 -15 -20 -25 -30 -35 -40 -10 0 2 4 6 8 10 12 14 Fre
