TGS2313, 4 - 18 GHz VPIN SP3T Switch

4 - 18 GHz VPIN SP3T Switch Key .
The TriQuint TGS2313 is a 4-18 GHz Single Pole Triple Throw (SP3T) Switch.

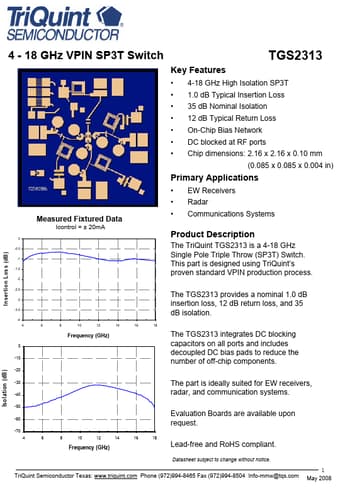

datasheet Preview Page 1 from Datasheet4u.com

TGS2313_TriQuintSemiconductor.pdf

TGS2313 Datasheet Preview — Preview of TGS2313 PDF

Datasheet Details

Part number:

TGS2313

Manufacturer:

TriQuint Semiconductor

File Size:

677.68 KB

Description:

4 - 18 GHz VPIN SP3T Switch

Features

* TGS2313 4-18 GHz High Isolation SP3T 1.0 dB Typical Insertion Loss 35 dB Nominal Isolation 12 dB Typical Return Loss On-Chip Bias Network DC blocked at RF ports Chip dimensions: 2.16 x 2.16 x 0.10 mm (0.085 x 0.085 x 0.004 in) P

Applications

* Measured Fixtured Data Icontrol = ± 20mA 0 -0.5 EW Receivers Radar Communications Systems
