TGS2302 Datasheet, switch equivalent, TriQuint Semiconductor

TGS2302 Features

  • Switch
  • TGS2302 4-20 GHz High Isolation SPDT < 0.9 dB Typical Insertion Loss 35 dB Nominal Isolation 12 dB Typical Return

PDF File Details

Part number:

TGS2302

Manufacturer:

TriQuint Semiconductor

File Size:

267.69kb

Download:

📄 Datasheet

Description:

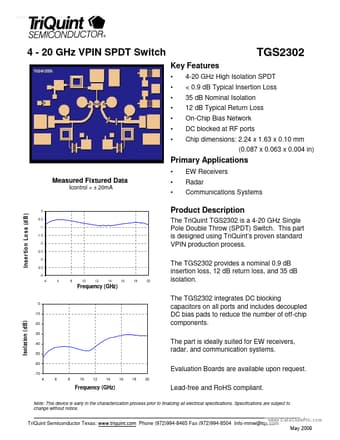

Vpin spdt switch. The TriQuint TGS2302 is a 4-20 GHz Single Pole Double Throw (SPDT) Switch. This part is designed using TriQuint’s proven standard VPI

Datasheet Preview: TGS2302 📥 Download PDF (267.69kb)
Page 2 of TGS2302 Page 3 of TGS2302

TGS2302 Application

  • Applications
  • Measured Fixtured Data Icontrol = ± 20mA EW Receivers Radar Communications Systems
  • 0 Insertion Loss (

TAGS

TGS2302
VPIN
SPDT
Switch
TriQuint Semiconductor
