TGS2304-SCC

SP4T VPIN

TGS2304-SCC Features

* and Performance

* 0.2 to 20 GHz Frequency Range 0.6 dB Typical Midband Insertion Loss 38 dB Typical Midband Isolation Typical Input / Output SWR 1.2:1, Midband 23 dB Typical Input Power at 1 dB Gain Compression 2.5 x 3.6 x 0.1 mm (0.100 x 0.1

TGS2304-SCC General Description

The TriQuint TGS2304-SCC is a GaAs monolithic PIN-diode single-pole, four-throw switch, in chip form, that operates from 0.2 to 20 GHz. Each arm consists of one series and two shunt PIN diodes. At a bias current of 10 mA per RF output arm, typical midband insertion loss is 0.6 dB; midband return los.

TGS2304-SCC Datasheet (443.37 KB)

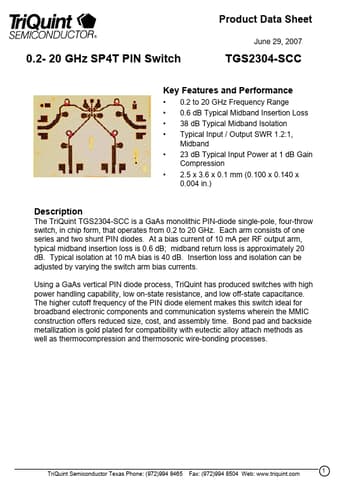

Preview of TGS2304-SCC PDF

Datasheet Details

Part number:

TGS2304-SCC

Manufacturer:

TriQuint Semiconductor

File Size:

443.37 KB

Description:

Sp4t vpin.
